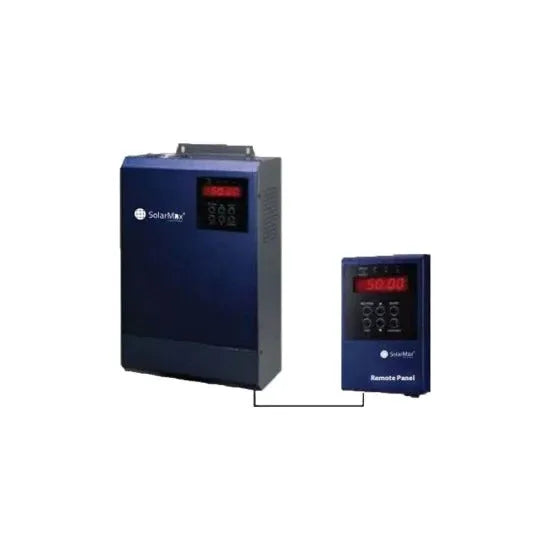

Solar Max Sm-Wp-11k Pump Solar Inverter Price in Pakistan is Rs. /-.
The Solar Max Sm-Wp-11k Water Pump Solar Inverter is a versatile solution for powering water pumps using solar energy. With a built-in MPPT solar charger, it optimizes energy conversion for maximum efficiency. It supports both single-phase and three-phase asynchronous motors, catering to various pump types such as surface and submersible pumps. Additionally, it seamlessly switches to single-phase AC input when solar energy is unavailable. Equipped with full protection and self-diagnosis features, it ensures system safety and reliability. The soft start function prevents water hammer effect, extending the system's lifecycle. Real-time system status can be monitored through comprehensive LEDs and a display screen, with remote monitoring enabled via RS-485 connectivity. An optional remote panel is also available for enhanced control and mo...
Supports single-phase or three-phase asynchronous motor depending on models (surface & submersible)
Supports single-phase AC input when PV energy is not
Built-in full protection and self-diagnosis
Soft start function prevents water hammer effect and extends system lifecycle
Comprehensive LEDs and display screen for real-time system status
Remote monitoring through RS-485
Optional remote panel available
Product Specifications
Communication interface
rs-232/rs-485
humidity
< 95% rh (non-condensing)
efficiency
> 97%
frequency precision
±0.2%
rated power output
11000 w(15hp) (supports 10~15hp water pump)
nominal output current
22 a
nominal voltage
3 x 380/400/415/440 vac
operating temperature
-20°c~45°c at 100% full load, 46°c~60°c power derating
ip protection
ip20
nominal dc voltage [v]
maximum dc
voltage
540 vdc / 800 vdc
Product Details
Solar Max Sm-Wp-11k Pump Solar Inverter Price in Pakistan is Rs. /-.
The Solar Max Sm-Wp-11k Water Pump Solar Inverter is a versatile solution for powering water pumps using solar energy. With a built-in MPPT solar charger, it optimizes energy conversion for maximum efficiency. It supports both single-phase and three-phase asynchronous motors, catering to various pump types such as surface and submersible pumps. Additionally, it seamlessly switches to single-phase AC input when solar energy is unavailable. Equipped with full protection and self-diagnosis features, it ensures system safety and reliability. The soft start function prevents water hammer effect, extending the system's lifecycle. Real-time system status can be monitored through comprehensive LEDs and a display screen, with remote monitoring enabled via RS-485 connectivity. An optional remote panel is also available for enhanced control and monitoring capabilities
