Solar Max Sm-Wp-2.2k Pump Solar Inverter Price in Pakistan is Rs. /-.

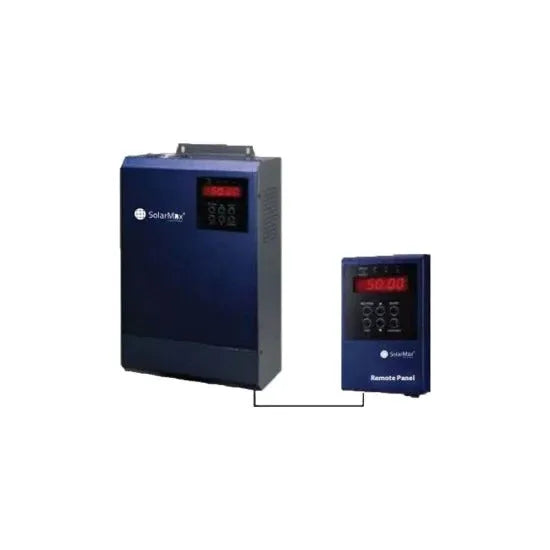

The Solar Max Sm-Wp-2.2k Ls Water Pump Solar Inverter is a reliable solution designed for powering water pumps using solar energy. Featuring a built-in MPPT solar charger, it efficiently optimizes energy conversion for maximum output. It supports both single-phase and three-phase asynchronous motors, catering to various pump types including surface and submersible pumps. In instances where PV energy is unavailable, it seamlessly switches to single-phase AC input. With built-in full protection and self-diagnosis capabilities, it ensures the safety and reliability of the system. The soft start function prevents water hammer effect, contributing to the extended lifecycle of the system. Real-time system status can be easily monitored through comprehensive LEDs and a display screen, with remote monitoring enabled via RS-485 connectivity. Fo...
Supports single-phase or three-phase asynchronous motor depending on models (surface & submersible)
Supports single-phase AC input when PV energy is not
Built-in full protection and self-diagnosis
Soft start function prevents the water hammer effect and extends the system lifecycle
Comprehensive LEDs and display screen for real-time system status
Remote monitoring through RS-485
Optional remote panel available
Product Specifications
Communication interface
rs-232/rs-485
humidity
< 95% rh (non-condensing)
efficiency
> 97%
rated power output
2200 w(3hp) (supports 0.75~3hp water pump)
nominal output current
14 a / 10 a
nominal voltage
220/230/240 vac
operating temperature
-20°c~45°c at 100% full load, 46°c~60°c power derating
ip protection
ip20
input voltage
220/230/240 vac (-15% ~ +10%)
input frequency
47 hz ~ 63 hz
nominal dc voltage [v]
maximum dc voltage
Product Details
Solar Max Sm-Wp-2.2k Pump Solar Inverter Price in Pakistan is Rs. /-.
The Solar Max Sm-Wp-2.2k Ls Water Pump Solar Inverter is a reliable solution designed for powering water pumps using solar energy. Featuring a built-in MPPT solar charger, it efficiently optimizes energy conversion for maximum output. It supports both single-phase and three-phase asynchronous motors, catering to various pump types including surface and submersible pumps. In instances where PV energy is unavailable, it seamlessly switches to single-phase AC input. With built-in full protection and self-diagnosis capabilities, it ensures the safety and reliability of the system. The soft start function prevents water hammer effect, contributing to the extended lifecycle of the system. Real-time system status can be easily monitored through comprehensive LEDs and a display screen, with remote monitoring enabled via RS-485 connectivity. For enhanced control and monitoring options, an optional remote panel is available.
