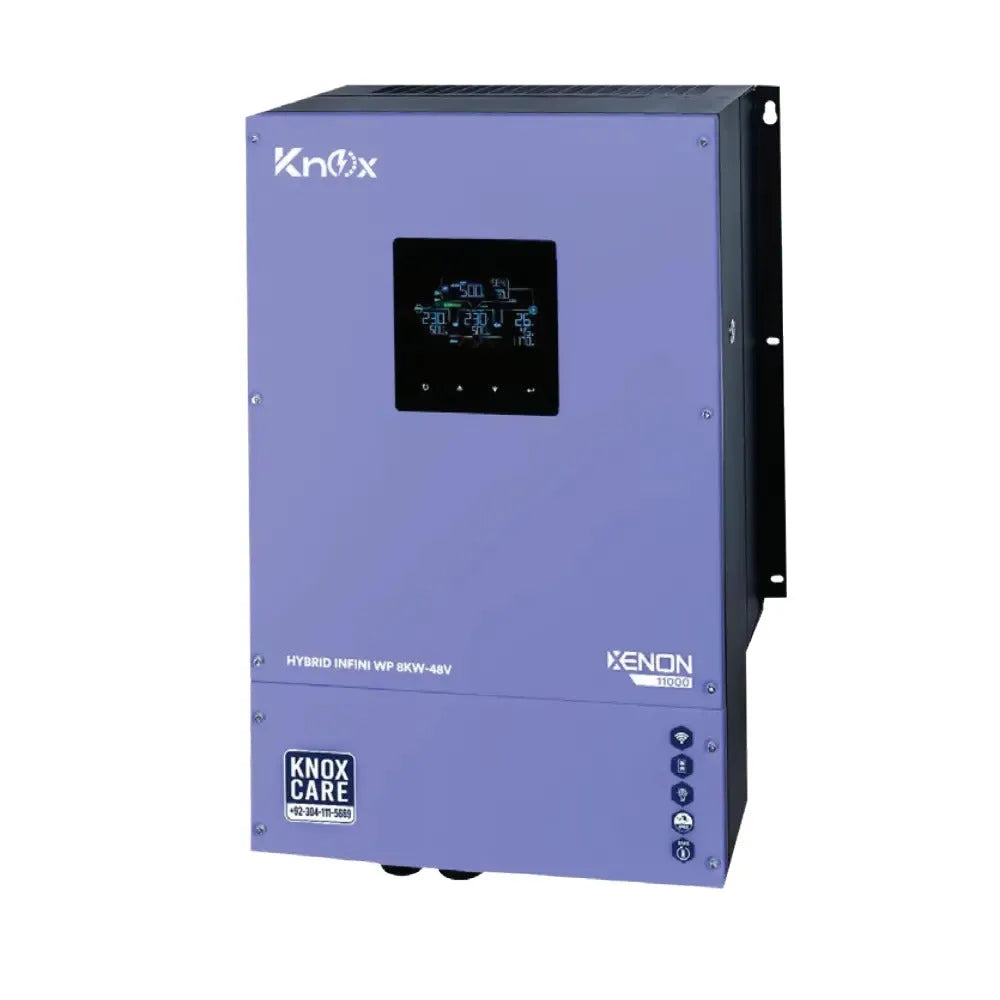

Knox Xenon 8kW PV11000W IP65 Hybrid Solar Inverter Price in Pakistan is Rs. 340,000/-. The Knox Xenon 8kW PV11000W Hybrid Solar Inverter offers exceptional solar power conversion with a robust design for residential, commercial, and industrial applications. Equipped with built-in Wi-Fi for remote monitoring, it enables users to track performance in real-time via online platforms. The IP65 rating ensures its durability and protection against dust and water, making it ideal for harsh outdoor environments. The inverter's dual output feature allows for efficient operation of both smart and heavy-duty appliances. Designed for grid-tied solar power integration and batteryless operation, the Knox Xenon inverter provides reliable energy without the need for batteries. When paired with battery storage, the Battery Management System (BMS) ensures optimal charging and safety.
yes, supports up to 9 units in parallel
electrical specifications
maximum pv input power
11000w
rated output power
8000w / 8000va
maximum charging power
11000w
nominal dc voltage / maximum dc voltage
500 vdc
start-up voltage / initial feeding voltage
80 vdc / 150 vdc
mpp voltage range
90 ~ 450 vdc
number of mpp trackers
2
maximum input current per tracker
18a
nominal output voltage
220/230/240 vac
output voltage range
184 - 264.5 vac or 195.5 - 253 vac (selectable)
nominal output current
36a
power factor
0.9 lag ~ 0.9 lead
surge power
16000va
no load power consumption
< 85w
maximum conversion efficiency (dc/ac)
96%
transfer time (for personal computers)
10 ms
transfer time (for home appliances)
20 ms
battery mode output (ac)
output waveform
pure sine wave
efficiency (dc to ac)
91%
battery voltage
48 vdc
floating charge voltage
54 vdc
overcharge protection
66 vdc
battery voltage range
40 ~ 62 vdc
maximum solar charging current
150a
maximum ac charging current
150a
maximum charging current
150a
solar charger type
mppt (maximum power point tracking)
grid-tie operation (ac output)
nominal output voltage
220/230/240 vac
output voltage range
184 - 264.5 vac or 195.5 - 253 vac (selectable)
efficiency
> 0.99
frequency range
50 hz / 60 hz (auto sensing)
surge power
16000va
off-grid operation (ac input)
ac start-up voltage / auto restart voltage
120 - 140 vac / 180 vac
acceptable input voltage range
170 - 280 vac (for personal computers) / 90 - 280 vac (for home appliances)
maximum ac input current
36a
ip rating
ip65 (dust and water-resistant, suitable for outdoor environments)
cooling method
fan-assisted cooling for enhanced thermal management
Product Details
Knox Xenon 8kW PV11000W IP65 Hybrid Solar Inverter Price in Pakistan is Rs. 340,000/-. The Knox Xenon 8kW PV11000W Hybrid Solar Inverter offers exceptional solar power conversion with a robust design for residential, commercial, and industrial applications. Equipped with built-in Wi-Fi for remote monitoring, it enables users to track performance in real-time via online platforms. The IP65 rating ensures its durability and protection against dust and water, making it ideal for harsh outdoor environments. The inverter's dual output feature allows for efficient operation of both smart and heavy-duty appliances. Designed for grid-tied solar power integration and batteryless operation, the Knox Xenon inverter provides reliable energy without the need for batteries. When paired with battery storage, the Battery Management System (BMS) ensures optimal charging and safety.
