The Schneider Auxiliary Contact Block Terminals price in Pakistan is Rs 1,000/-.

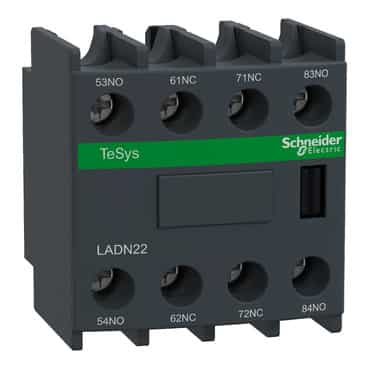

TeSys D instantaneous auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 2NO+2NC contacts (NC mirror certified) rated up to 10A/690V AC, connection by screw clamp terminals. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Designed for use with TeSys D contactors to expand control options.
2 Normally Open (NO) + 2 Normally Closed (NC) contacts for versatile applications.
Screw-clamp terminals ensure secure and stable wiring connections.
Quick clip-on mounting for fast and tool-free installation.
High electrical and mechanical durability for long-lasting performance.
Compact and space-saving design for easy integration into control panels.
Compliant with IEC, UL, and CSA standards for global compatibility.
Ideal for industrial automation, motor control, and machine applications.
Product Specifications
Product type
auxiliary contact block
contact configuration
2 no + 2 nc
terminal type
screw-clamp
rated operational voltage
≤ 690v ac
rated current
10a at ac-15
mounting type
clip-on for tesys d contactors
standards compliance
iec 60947-5-1, ul, csa
application
industrial control circuits and automation
Product Details
The Schneider Auxiliary Contact Block Terminals price in Pakistan is Rs 1,000/-.
TeSys D instantaneous auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 2NO+2NC contacts (NC mirror certified) rated up to 10A/690V AC, connection by screw clamp terminals. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
