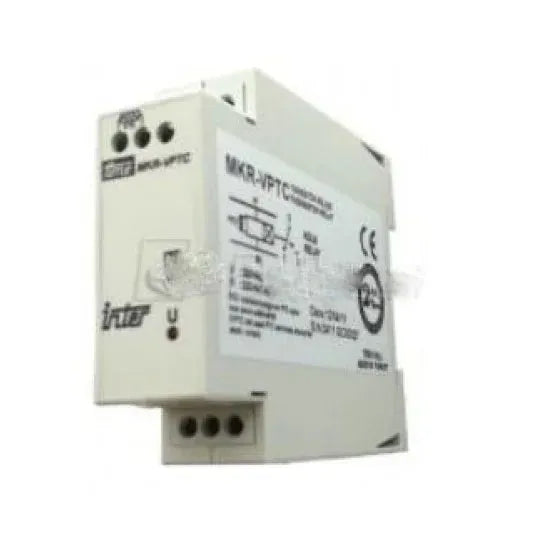

Inter Thermistor Motor Protection Relay Price in Pakistan Rs 12,300/-. The Inter MKR-PTC (PTC-01) Thermistor Motor Protection Relay is a precision device engineered to safeguard electric motors against overheating by monitoring the resistance of PTC thermistors embedded in the motor windings. When the motor temperature exceeds a safe limit, the relay promptly disconnects the motor to prevent damage. Compact and DIN rail mountable, this relay is ideal for industrial applications where reliable thermal protection is critical for motor longevity and performance.
Provides thermal protection for motors via PTC thermistor monitoring
Compatible with 1 to 6 thermistors in series
DIN rail mounting for easy installation in panels
Fast response to critical overtemperature events
Increases motor life and reduces downtime due to thermal faults
LED indicators for status and fault identification
Manual or automatic reset options for flexible operation
SPDT relay output for integration into control circuits
Product Specifications
Type
motor protection relay
control voltage
24v / 110v / 220v ac (model dependent)
contact rating
5a at 250v ac / 30v dc
enclosure material
flame-retardant plastic
humidity
=85% rh (non-condensing)
indication
led indicators for power and trip status
mounting type
din rail 35 mm
number of sensors supported
1–6 thermistors in series
operating temperature
-10°c to +60°c
output contact
1 changeover relay (spdt)
protection degree
ip20
reset type
manual or automatic (depending on configuration)
response time
< 1 second
sensor type
ptc thermistor (according to din 44081/44082)
storage temperature
-20°c to +70°c
trigger resistance threshold
typically around 3.3ko
Product Details
Inter Thermistor Motor Protection Relay Price in Pakistan Rs 12,300/-. The Inter MKR-PTC (PTC-01) Thermistor Motor Protection Relay is a precision device engineered to safeguard electric motors against overheating by monitoring the resistance of PTC thermistors embedded in the motor windings. When the motor temperature exceeds a safe limit, the relay promptly disconnects the motor to prevent damage. Compact and DIN rail mountable, this relay is ideal for industrial applications where reliable thermal protection is critical for motor longevity and performance.
