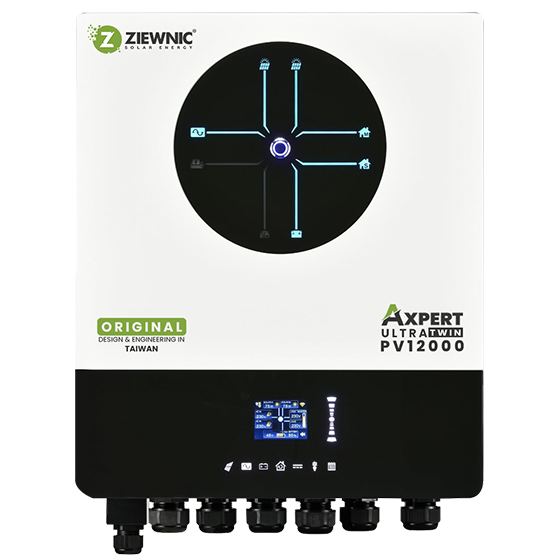

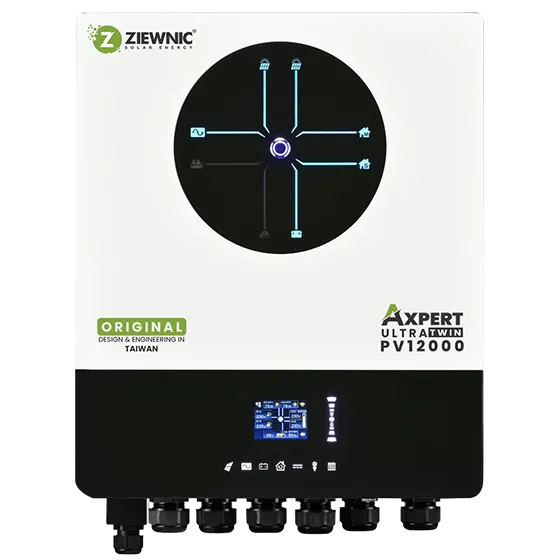

The Ziewnic Axpert UltraTwin PV12000 11kW Hybrid Solar Inverter is a premium high-capacity energy storage solution designed for residential, commercial, and industrial solar applications. Engineered in Taiwan, this advanced hybrid inverter features Dual MPPT technology, 150A charging capability, and support for parallel operation up to 6 units, making it ideal for large-scale energy systems. With built-in WiFi monitoring, dual AC outputs, lithium battery compatibility, and feed-in grid functionality, the PV12000 delivers reliable, efficient, and intelligent power management. Its pure sine wave output, built-in communication interfaces, and advanced protection features ensure maximum performance, flexibility, and long-term reliability.
Supports External Battery Temperature Sensor (BTS)
Optional GFCI, AFCI & Rapid Shutdown Support
Anti-Dust & Humidity Protection
Overload & Short Circuit Protection
Remote Monitoring & OTA Firmware Upgrade
5-Year Warranty
Product Specifications
Type
hybrid solar inverter
rated power
11000va / 11000w
parallel capability
up to 6 units
ac input voltage
230vac
selectable voltage range (pc mode)
170v – 280vac
selectable voltage range (home appliances)
90v – 280vac
frequency range
50hz / 60hz
ac output voltage regulation
230vac ±5%
surge power
22000va
peak efficiency
93%
transfer time
10ms (personal computer), 20ms (home appliances)
output waveform
pure sine wave
battery voltage
48vdc
floating charge voltage
54vdc
overcharge protection voltage
63vdc
solar charger type
mppt
maximum pv array power
12000w (6000w × 2)
mppt operating voltage range
90v – 450vdc
maximum pv open circuit voltage
500vdc
maximum pv input current
27a × 2 (max 40a)
maximum solar charge current
150a
maximum ac charge current
150a
maximum charge current
150a
dimensions (d × w × h)
145 × 438 × 553.6 mm
net weight
18.4 kg
communication interface
usb / rs232 / rs485 / wifi / dry contact / bts
external current sensor port
yes, built-in current transformer sensor
humidity
5% – 95% relative humidity (non-condensing)
operating temperature
-10°c to 50°c
storage temperature
-15°c to 60°c
safety compliance
ce
battery compatibility
lithium batteries supported
wifi monitoring
built-in
feed-in grid function
built-in
lcd display
2.8" colored lcd with slide operation
protection features
overload protection, short circuit protection, anti-dust protection, afci support, rapid shutdown support, gfci support
dual mppt configuration
yes
dual ac output
yes
smart load management
supported
warranty
5 years
Product Details
The Ziewnic Axpert UltraTwin PV12000 11kW Hybrid Solar Inverter is a premium high-capacity energy storage solution designed for residential, commercial, and industrial solar applications. Engineered in Taiwan, this advanced hybrid inverter features Dual MPPT technology, 150A charging capability, and support for parallel operation up to 6 units, making it ideal for large-scale energy systems. With built-in WiFi monitoring, dual AC outputs, lithium battery compatibility, and feed-in grid functionality, the PV12000 delivers reliable, efficient, and intelligent power management. Its pure sine wave output, built-in communication interfaces, and advanced protection features ensure maximum performance, flexibility, and long-term reliability.
